GTS-HT High Temperature Heat Shrink Sleeve up to 120°C, by Canusa-CPS

Farwest has been a distributor of Canusa-CPS products of heat-shrinkable materials for girth welds, HDD applications, flanges, bends, elbows, T’s and risers for decades

Shrink sleeve for girth-weld protection of high operating temperature FBE coated pipelines

Description

Product Description

The Canusa-CPS GTS-HT shrink sleeve system provides superior corrosion protection and excellent bonding on FBE coated pipelines operating at temperatures up to 120°C (248°F) (actual rating may vary depending on local requirements).GTS-HT sleeves consist of a thick crosslinked backing coated with a very high shear strength hot-melt adhesive. During installation, the adhesive melts and flows, filling surface irregularities and providing an excellent bond to metal and FBE coating.

Features & Benefits

Long Term Corrosion Protection: The adhesive/backing combination provides a protective coating with the structural integrity of a seamless tube. The result is effective, long term protection against corrosion.
Rapid & Reliable Installation: GTS-HT can be installed with common equipment, including a propane torch. On large pipes over 760 mm (30"), an induction or infrared heater is recommended. The required preheat is significantly lower than that required by other systems. The result is quicker installation, reduced labor costs, and higher production rates.
Tough, Durable System: GTS-HT provides superior durability against abrasion, impact, penetration, and chemical attack.

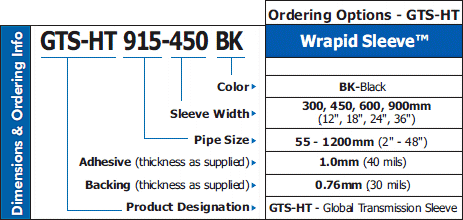

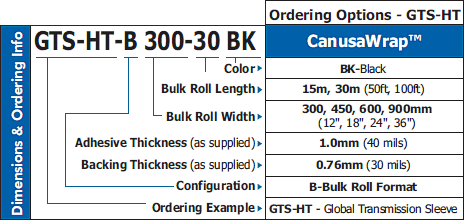

Flexible Installation: The GTS-HT closure has high shear strength adhesive inner layer. It is available in two configurations: attached to the sleeve or supplied separately.
